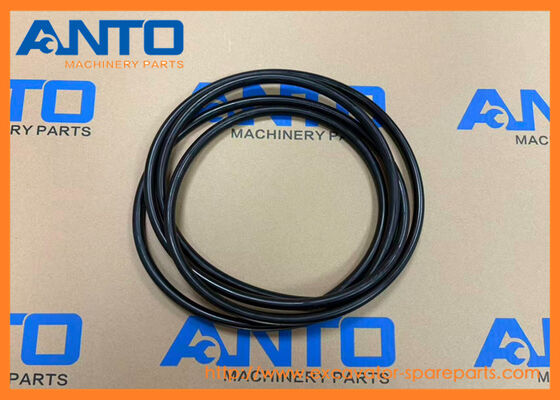

| Category |
Bulkhead (Sub-tank) |
| Name |
Hose |
| Parts No |
421-03-32170 4210332170 |
| Machine Number |
WA430 WA450 WA470 WA480 |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
- Key functions & working principle
| Working Principle |
1. Hydraulic oil is pressurized by the machine’s hydraulic pump (up to 35 MPa) during equipment operation. |
| 2. The 421-03-32170 hose acts as a conduit, transporting the high-pressure oil from the pump to actuators (cylinders, motors) or control valves. |
| 3. The 4-wire spiral reinforcement counteracts internal pressure, preventing the hose from expanding or failing. |
| 4. The outer cover protects the reinforcement and inner tube from external damage, while the NBR inner tube ensures compatibility with hydraulic oil. |
| 5. The hose flexes to accommodate movement of hydraulic components (e.g., excavator boom lifting) without restricting oil flow. |
| Core Functions |
1. High-Pressure Oil Conduction: Delivers pressurized hydraulic oil to power critical equipment functions (digging, lifting, steering), enabling heavy-load operation. |
| 2. Leak Prevention: Factory-crimped fittings and durable inner tube prevent hydraulic oil leakage – oil loss reduces system pressure, impairs performance, and creates safety hazards (slippery surfaces). |
| 3. Component Protection: Shields internal hydraulic components (pumps, valves) from contamination by blocking debris entry through damaged hoses. |
| 4. Environmental Adaptability: Withstands extreme temperatures, ozone, and weather – reliable in hot deserts, cold winters, and humid job sites. |
WHEEL LOADERS WA430 WA450 WA470 WA480 Komatsu
- More other hose applied to KOMATSU heavey machine
| BW047260 HOSE |
| HA250, HA270 |
| |
| 02741-002A9 Hose |
| PC228, PC228US, PC290, PC300, PC350 |
| |
| 395-62-14970 HOSE |
| WH609, WH713 |
| |
| 37B-1AC-1090 HOSE |
| FD10, FD100, FD115, FD20/25, FD20H/25H, FD20N/25N, FD30, FD30H, FD30N, FD35A |
| |
| 22M-62-35860 HOSE |
| PC45MR, PC55MR |
| |
| 2A5-62-18883 Hose |
| HB205, HB215, PC210, PC240, PC290 |
| |
| TEN0005-09200 HOSE |
| EG125S |
| |
| 6992-61-9220 HOSE,INLET |
| EG55, EG55S |
| |
| 37R-TCX-8610 HOSE,(FOR 4.5M MAST) |
| FB10/13RL, FB10/13RW, FB15RL, FB15RW, FB18RL |
| |
| 22M-01-11480 HOSE |
| PC40MR, PC40MRX, PC45MR, PC45MRX |
| |
| 427-Z89-3430 HOSE |
| WA900 |
| |
| 07100-20318 HOSE |
| WS23S |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
421-03-31181 |
[1] |
TANK Komatsu |
0.6 kg. |
| |
|
|
["SN: 60001-UP"] |
|
| 2. |
421-03-22170 |
[1] |
CAP Komatsu |
0.02 kg. |
| |
|
|
["SN: 60001-UP"] |
|
| 3 |
421-03-31461 |
[1] |
BRACKET Komatsu China |
|
| |
|
|
["SN: 60001-UP"] |
|
| 4 |
01010-80820 |
[1] |
BOLT Komatsu |
0.013 kg. |
| |
|
|
["SN: 60001-UP"] analogs:["801014067", "0101050820", "801015086"] |
|
| 5 |
01643-30823 |
[1] |
WASHER Komatsu |
0.004 kg. |
| |
|
|
["SN: 60001-UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"] |
|
| 6 |
206-03-43340 |
[1] |
CLIP Komatsu |
0.01 kg. |
| |
|
|
["SN: 60001-UP"] |
|
| 7 |
421-03-11980 |
[1] |
HOSE Komatsu |
0.08 kg. |
| |
|
|
["SN: 60001-UP"] |
|
| 8 |
04434-51210 |
[1] |
CLIP Komatsu |
0.015 kg. |
| |
|
|
["SN: 60001-UP"] |
|
| 10 |
01010-81016 |
[1] |
BOLT Komatsu |
0.06 kg. |
| |
|
|
["SN: 60001-UP"] analogs:["0101051016"] |
|
| 11 |
01643-31032 |
[1] |
WASHER Komatsu |
0.054 kg. |
| |
|
|
["SN: 60001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] |
|
| 12 |
421-03-32170 |
[1] |
HOSE Komatsu China |
|
| |
|
|
["SN: 60001-UP"] |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
