| Category |
Air Conditioner Part |
| Name |

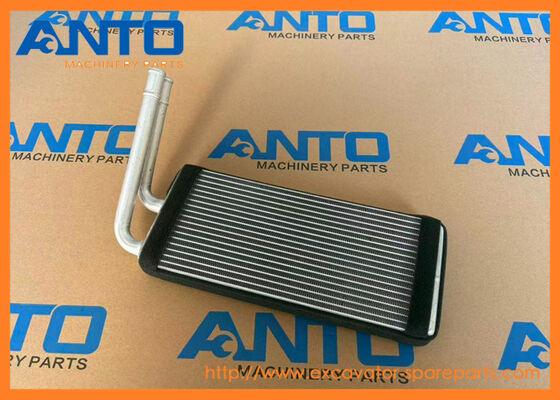

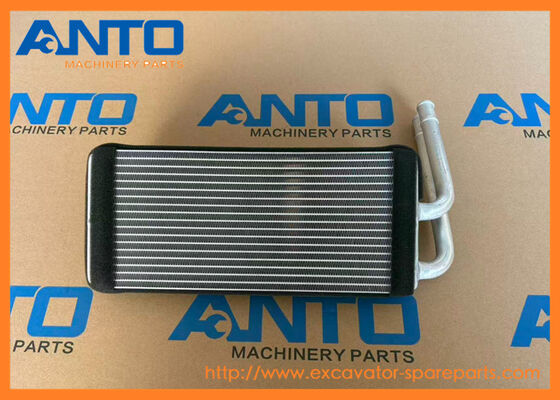

Radiator |
| Parts No |
LQ20M00059S001 |
| Machine Number |
SK200-8 SK210-8 SK200-9 SK210-9 |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
- Key functions & working principle
| Working Principle |
1. Hot coolant from the engine cylinder head flows into the radiator’s upper header (inlet port) |
| 2. Coolant passes through the core’s aluminum tubes, where heat is transferred to the surrounding fins |
| 3. A cooling fan (driven by the engine or electric motor) pulls ambient air through the fins, dissipating heat from the coolant |
| 4. Cooled coolant collects in the lower header and returns to the engine (outlet port) to repeat the cycle |
| 5. The pressure cap regulates system pressure to keep coolant from boiling, even at high engine temperatures |
| Core Functions |
1. Engine Temperature Regulation: Maintains J05E engine within optimal operating range (80–95°C), preventing overheating and reducing wear on pistons, bearings, and gaskets |
| 2. Heat Dissipation: Removes excess heat generated by fuel combustion and friction in the engine |
| 3. Coolant Retention: Leak-proof design ensures no loss of coolant, avoiding engine overheating and corrosion |
| 4. Compatibility with Auxiliary Cooling: Integrates with hydraulic oil coolers (where fitted) to cool hydraulic fluid, extending the life of hydraulic components |
HEAVY EQUIPMENT SK170 ACERA M-9 SK170-8 SK170-9 SK210-8 SK210-9 SK260-9 SK295-9 SK350-9 SK485-9 SK485LC-9 Kobelco
- More other radiator applied to KOBELCO heavey machine
| YN05P00010S006 RADIATOR CAP |
| SK235SR-1E, SK200LC-6, ED150, SK200LC-6ES, SK485-8, SK235SR-1ES, SK200LC, SK235SR-2, SK210-9, ED195-8, SK235SRLC, SK200SR-1S, SK235SRLC-1E, SK210D-8, SK200SRLC-1S, 140SR, SK200SRLC, SK235SRLC-1ES, SK2... |
| |
| YM05P00019S006 RADIATOR |
| SK170-9, SK170 ACERA M-9, SK170-8, ED195-8 |
| |
| YN05P00088S032 RADIATOR CAP |
| SK260, SK485-8, SK210-9, SK485LC-9, SK170 ACERA M-9, SK485-9, SK295-8 |
| |
| YN05P01418P1 RADIATOR HOSE |
| SK210LC-8, SK210-8, SK210-9 |
| |
| YN05P00062S039 RADIATOR |
| SK210-9 |
| |
| LB05P00018S006 RADIATOR |
| SK260-9, SK295-9, SK260, SK295-8 |
| |
| LB05P00028S001 RADIATOR |
| SK260-9, SK295-9 |
| |
| LC05P00064F1 RADIATOR |
| SK350-9 |
| |
| LC05P00067F1 RADIATOR |
| SK350-9 |
| |
| LS05P00072F1 RADIATOR |
| SK485-9 |
| |
| LS05P00073F1 RADIATOR |
| SK485-9 |
| |
| VHSZ91044G06 RADIATOR HOSE |
| SK485-9 |
| |
| YN05P00088S032 RADIATOR CAP |
| SK260, SK485-8, SK210-9, SK485LC-9, SK170 ACERA M-9, SK485-9, SK295-8 |
| |
| YM05P00020F4 RADIATOR |
| SK170 ACERA M-9 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
LQ20M00059S001 |
[1] |
RADIATOR |
SM |
| 2 |
LQ20M00059S002 |
[1] |
BOX |
SM |
| 3 |
LQ20M00059S003 |
[1] |
BRACKET |
SM |
| 4 |
LQ20M00059S004 |
[1] |
GASKET |
SM |
| 5 |
LQ20M00059S005 |
[1] |
LEVER |
SM |
| 6 |
LQ20M00059S006 |
[1] |
LEVER |
SM |
| 7 |
LQ20M00059S007 |
[1] |
COVER |
SM |
| 8 |
LQ20M00059S008 |
[1] |
SENSOR |
SM |
| 10 |
LQ20M00059S010 |
[1] |
BOX |
SM |
| 14 |
LQ20M00059S014 |
[1] |
COVER |
SM |
| 15 |
LQ50V01007P1 |
[1] |
FILTER |
SM A/C (Inner) Superseded by part number: 47814788 |
| 17 |
LQ20M00059S017 |
[1] |
GASKET |
SM |
| 20 |
LQ20M00059S020 |
[3] |
ELECTRIC MOTOR |
SM |
| 22 |
LQ20M00059S022 |
[1] |
LEVER |
SM |
| 23 |
LQ20M00059S023 |
[1] |
LEVER |
SM |
| 24 |
LQ20M00059S024 |
[1] |
LEVER |
SM |
| 25 |
LQ20M00059S025 |
[1] |
LEVER |
SM |
| 26 |
LQ20M00059S026 |
[1] |
UNIVERSAL JOINT |
SM |
| 27 |
LQ20M00059S027 |
[1] |
UNIVERSAL JOINT |
SM |
| 28 |
LQ20M00059S028 |
[1] |
UNIVERSAL JOINT |
SM |
| 29 |
LQ20M00059S029 |
[2] |
ROD |
SM |
| 30 |
LQ20M00059S030 |
[1] |
LEVER |
SM |
| 31 |
LQ20M00059S031 |
[1] |
LEVER |
SM |
| 32 |
LQ20M00059S032 |
[1] |
LEVER |
SM |
| 33 |
LQ20M00059S033 |
[1] |
LINK CONROD |
SM |
| 34 |
LQ20M00059S034 |
[1] |
ROD |
SM |
| 38 |
LQ20M00059S038 |
[2] |
RELAY |
SM |
| 39 |
LQ20M00059S039 |
[1] |
RESISTOR |
SM |
| 47 |
LQ20M00059S047 |
[14] |
SCREW |
SM |
| 48 |
LQ20M00059S048 |
[4] |
BUSHING |
SM |
| 49 |
LQ20M00059S049 |
[2] |
RETAINER |
SM |
| 50 |
LQ20M00059S050 |
[1] |
SCREW |
SM |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
