39K6-12120 Drive Shaft HYUNDAI Excavator Spare Parts Fitting For HX220L HX220NL

Alle Produkte
Bagger-Ersatzteile (5132)
Bagger-Achsantrieb (450)
Baggerschwingengang (353)
BaggerMaschinenteile (1751)
Bagger-Fahrmotor (163)
Bagger Swing Motor (125)
Baggerlager (323)
Hydraulikpumpe des Baggers (501)
Bagger Main Control Valve (219)
Bagger Electric Parts (927)
Bagger Air Conditioner Parts (389)
Bagger-Monitor (87)
Bagger-Prüfer (153)
Baggerfahrgestellteile (39)
Bagger-Hydrozylinder (79)
Planierraupen-Ersatzteile (184)
Baumaschinen-Teile (271)
Bagger Filter (380)
Ich schätze die Hilfe von Paul, ist er prefessional und weiß genau, welche Teile ich benötige. Mein CAT ist zurück gegangen, ohne Probleme zu arbeiten.

—— RAPHAEL

Erhielt den Achsantrieb und sein schönes denke ich. Wir haben, ihn in unserem Bagger Hitachis ZX330 zusammenbauen zu lassen, meine Maschinen gehen, wieder jetzt zu arbeiten. Viel Dank

—— Kevin

Schneller Versand, die angekommenen Teile ist gute Qualität, wird unsere Maschine repariert und läuft tadellos an der Höchstleistung. Danke, segnen Gott.

—— Mohamed

Ich bin online Chat Jetzt

39K6-12120 Drive Shaft HYUNDAI Excavator Spare Parts Fitting For HX220L HX220NL

39K6-12120 Drive Shaft HYUNDAI Excavator Spare Parts Fitting For HX220L HX220NL
39K6-12120 Drive Shaft HYUNDAI Excavator Spare Parts Fitting For HX220L HX220NL 39K6-12120 Drive Shaft HYUNDAI Excavator Spare Parts Fitting For HX220L HX220NL

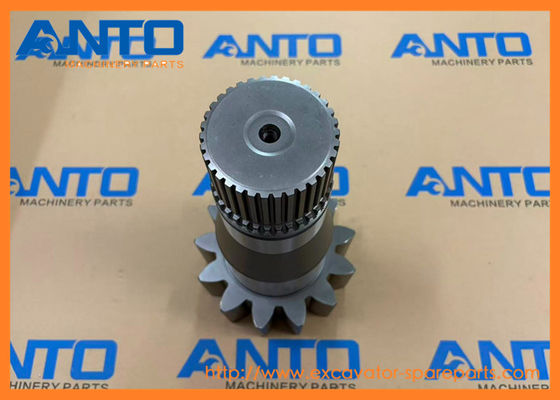

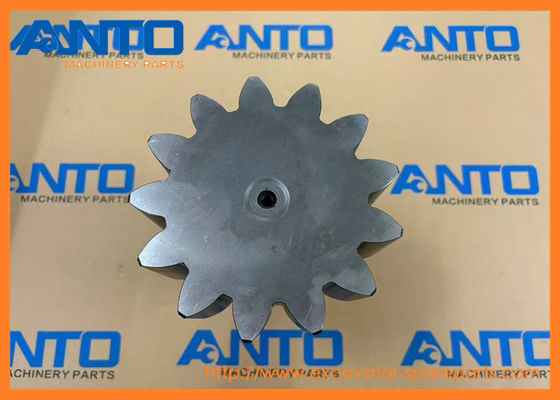

Großes Bild :  39K6-12120 Drive Shaft HYUNDAI Excavator Spare Parts Fitting For HX220L HX220NL

Produktdetails:
Herkunftsort: CHINA
Markenname: OEM
Modellnummer: 39K6-12120
Zahlung und Versand AGB:
Min Bestellmenge: 1 PCs
Preis: 149 USD / pcs
Verpackung Informationen: Holzkiste für schwere Teile, Papierkarton für leichte Teile
Lieferzeit: 3-7 Arbeitstage
Zahlungsbedingungen: T/T, D/P, D/A, Western Union, L/C, Moneygram
Versorgungsmaterial-Fähigkeit: 100-2000
Kontakt
Ausführliche Produkt-Beschreibung
Kategorie: Swing -Ruduktionsausrüstung Maschinenmodell: HX220L HX220NL
Anwendung: Bagger Produktname: Antriebswelle
Teilenummer: 39K6-12120 Verpackung: Standard -Exportkarton
Hervorheben:

HYUNDAI excavator drive shaft

,

HX220L excavator spare parts

,

39K6-12120 drive shaft replacement

  • 39K6-12120 Drive Shaft HYUNDAI Excavator Spare Parts Fitting For HX220L HX220NL





  • Specification
Name Drive Shaft
Parts No 39K6-12120
Machine Model HX220L HX220NL
Category Swing Ruduction Gear
Lead time 1-3 DAYS
Quality Brand new, OEM quality
MOQ 1 PCS
Means of transport By sea/air, DHL FEDEX UPS TNT EMS
Packing As request or standard packing





  • Function

This drive shaft integrates two CV joints to maintain smooth power delivery under varying angles and loads. The inner joint connects to the transaxle output, while the outer joint attaches to the wheel hub. The shaft tube is designed to be lightweight yet rigid, reducing rotational inertia and improving fuel efficiency.





  • Compatible models

F-SERIES CRAWLER EXCAVATOR HX220L HX220NL Hyundai





  • More other shaft parts fit for HYUNDAI machine
3935646 SHAFT-ACCESSORY DRIVE
100D-7, 110D-7A, 110D-7E, 110D-9, 180DE, 250D-9, 250DE, 35D-9, 50D-9, 80D-9, HL730-7, HL730-7A, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL730TM-9, HL730TM-9A, HL730TM7, HL730TM7A, HL740-7, HL740-7A, H...

4928699 SHAFT-ROCKER LEVER
110D-7A, 110D-7E, 110D-9, 35D-9, 50D-9, 80D-9, HL730-9, HL730-9A, HL730-9S, HL730-9SB, HL730TM-9, HL730TM-9A, HL740-7A, HL740-9, HL740-9A, HL740-F, HL740TM-7A, HL740TM-9, HL740TM-9A, HL740TM-F, HL757-...

XKAY-00009 SHAFT-CAM
HW140, HW210, HX140L, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L, R110-7, R110-7A, R1200-9, R125LCR-9A, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R14...

81N6-13110 SHAFT
HX140L, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, R110-7, R110-7A, R140LC-7, R140LC-7A, R140LC9, R140LC9A, R140LC9S, R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R180LC7, R180LC7A, R180LC9, ...

81EM-13031 SHAFT
HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R180LC7, R180LC7A, R180LC9, R180LC9A, R180LC9S, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC7A, R21...

31N6-40921 SHAFT
HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC7, R210NLC7A, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R235...

81N6-11111 SHAFT
HX180L, HX220L, HX220NL, HX235L, HX260L, R180LC9, R180LC9A, R180LC9S, R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC7A, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A...

39Q6-11120 SHAFT
HW210, HX160L, HX180L, HX220L, HX220NL, HX235L, HX260L, HX480L, HX520L, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W9, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R210LC7A, R210LC9, R210LC9BC, R210L...

39Q6-41180 SHAFT
HX220L, HX220NL, HX235L, HX260L, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S, RD210-7





  • Catalog parts list
Pos. Part No Qty Parts name Comments
*. 39K6-10150 [1] SWING MOTOR ASSY *-1, *-2, TYPE 1
*. 39K6-10151 [1] SWING MOTOR ASSY *-1, *-2, TYPE 1
*. 38K6-10150 [1] SWING MOTOR ASSY *-1, *-2, TYPE 2
*. 38K6-10151 [1] SWING MOTOR ASSY *-1, *-2, TYPE 2
*-2. 39K6-12100 [1] SWING REDUCTION GEAR
*-2. 39K6-12101 [1] SWING REDUCTION GEAR
1 39Q6-12110 [1] GEAR-RING
2 39K6-12120 [1] SHAFT-DRIVE
3 39Q6-12130 [1] BEARING-TAPER.MAIN
4 39Q6-12140 [1] BEARING-TAPER
5 39Q6-12150 [1] NUT-RING
6 39Q6-12161 [1] PLATE-LOCK
7 S017-120166 [4] BOLT-HEX
8 39Q6-12171 [1] CASING
8 39Q6-12172 [1] CASING
9 S109-100306 [10] BOLT-SOCKET
K10. 39Q6-12190 [1] CARRIER 2
K11. 39Q6-12200 [3] GEAR-PLANETARY 2
K12. 39Q6-12210 [6] BEARING-NEEDLE 2
K13. 39Q6-12220 [6] WASHER-THRUST 2
K14. 39Q6-12230 [3] PIN-CARRIER 2
K15. S472-800364 [3] PIN-SPRING
K16. 39Q6-12240 [1] GEAR-SUN 2
K17. 39Q6-12260 [1] CARRIER 1
K18. 39Q6-12271 [3] GEAR-PLANETARY 1
K19. 39Q6-12280 [3] BEARING-NEEDLE 1
K20. 39Q6-12290 [3] WASHER-THRUST 1,UPP
K21. 39Q6-12300 [3] WASHER-THRUST 1,LOW
K22. 39Q6-12310 [3] PIN-CARRIER 1
K23. S472-600364 [3] PIN-SPRING
K24. 39Q6-12320 [1] GEAR-SUN 1
K25. 39Q6-12330 [2] PLATE-THRUST
26 39Q6-12340 [1] SLEEVE
27 S631-120001 [1] O-RING
28 39Q6-12350 [1] SEAL-OIL
29 39Q6-41450 [2] PIN-PARALLEL
30 S109-16045D [12] BOLT-SOCKET
31 39K6-12360 [1] NAME PLATE
31 39K6-12361 [1] NAME PLATE
32 39Q6-41800 [2] RIVET
33 P220-430204 [1] PLUG-HEX
*-1. 39K6-11100 [1] SWING MOTOR UNIT TYPE 1
*-1. 38K6-11100 [1] SWING MOTOR UNIT TYPE 2
*-1. 38K6-11100 [1] SWING MOTOR UNIT TYPE 2
K1. 39Q6-12180 [1] CARRIER ASSY KIT 1 SEE ILLUST
K2. 39Q6-12250 [1] CARRIER ASSY KIT 2 SEE ILLUST

39K6-12120 Drive Shaft HYUNDAI Excavator Spare Parts Fitting For HX220L HX220NL 0







  • We could supply the following spare parts



1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.



2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.



3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.



4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.



5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.



6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.







  • Advantage



1. Offer Top quality & competitive products


2. Support 12-month warranty


3. 100% tested before shipping


4. Delivery in time


5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator


6. More than 15 years production and 11 years foreign trade experience


7. Professional QC team


8. Best sales team, 24 hours service







  • Packing and Shipping



Packing Details :



inner packing : plastic film for wrapping



external packing : wooden



Shipping :



within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.



1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,



2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.



3. By Sea: Delivery from the Huangpu port .





Größe und Tag:

Bagger Parts,

HYUNDAI excavator drive shaft,

HX220L excavator spare parts
